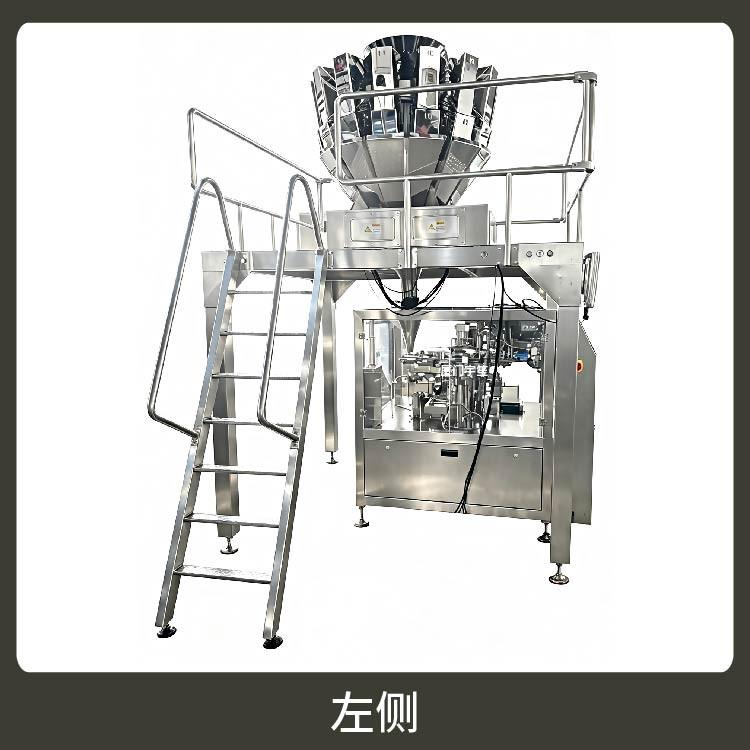

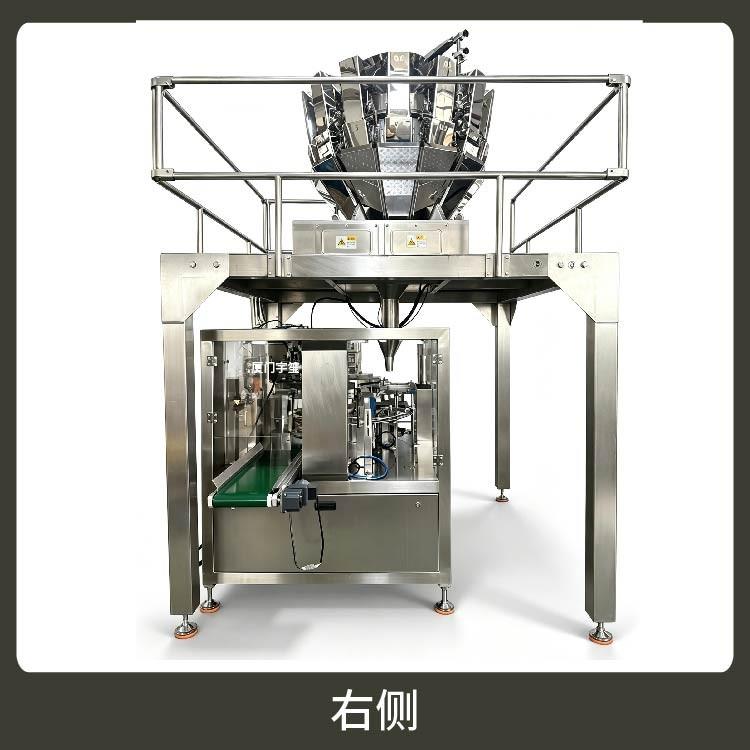

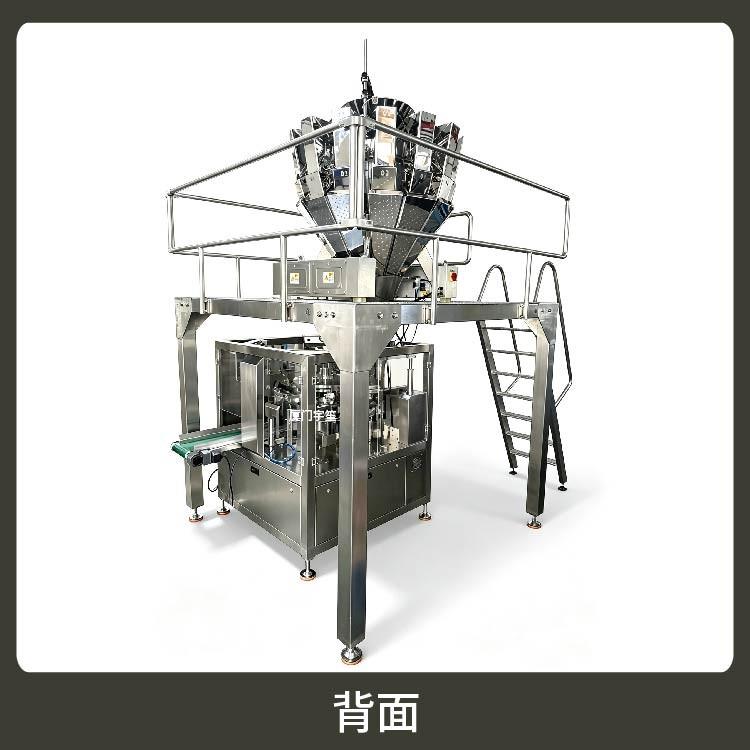

YS-XZ8-220A 八工位旋轉給袋包裝機
YS-XZ8-220A 8工位旋轉給袋機 8?Station Rotary Pre?made Pouch Packaging Machine
特 點 Features
1、可適配不同規格、材質的預制袋（如自立袋、拉鏈袋、常規袋等），通過簡單調整即可切換袋型，速度快、效率高，穩定性好；支持顆粒、粉末、液體、醬料、塊狀等多形態物料包裝。Compatible with pre?made pouches of various sizes and materials (stand?up pouches, zipper pouches, regular pouches, etc.). Pouch?type change?over is achieved with simple adjustments. It delivers high?speed, high?efficiency and reliable performance for multi?form materials: granules, powders, liquids, pastes and block?shaped goods.
2、伺服控制系統調速技術確保動作精準、運行平穩；配備空袋監測、不開袋不封口等安全機制，避免物料浪費和包裝失敗。Servo?controlled speed regulation ensures precise movements and stable operation. Safety features include empty?pouch detection and no?seal for un?opened pouches to eliminate material waste and packaging faults.
3、設備采用間歇式旋轉平臺，取袋、開袋、灌裝、封口、整形等多個工位圓周排布，依靠旋轉完成各工序連續銜接；整機結構緊湊、節省占地，可高效滿足大產能包裝需求。袋體全程夾具夾持，袋型平整美觀，雙封封口均勻牢固。
Intermittent rotary?platform design. Stations for pouch feeding, pouch opening, filling, sealing and shaping are arranged circumferentially for seamless process transition. Compact footprint for high?capacity production. Pouches are held by grippers during the whole cycle, delivering flat, aesthetic pouches with uniform, robust double?side seals.
4、可拓展選配打碼、袋口除塵、充氮排氣、真空等功能模塊，適配鎖鮮、防潮等特殊包裝需求。Optional modules available:coding, pouch?mouth dust removal, nitrogen flushing, gas venting and vacuum functions for special packaging requirements including freshness?locking and moisture?proof packaging.
5、包裝材料：復合膜，如：純鋁，鍍鋁等預制袋。
Packaging Materials: Composite film, Pre?made pouches (Pure aluminum film, Metallized film, etc.)
封口方式 Sealing Type
預制袋Pre-made Pouch
技術參數
Technical Parameters
計量范圍：10 - 1500g（視物料特性而定）
Filling Range:(Subject to material properties)
預制袋：長 ( L ) ：150 - 320mm
Pre-made Pouch 寬 ( W ) ：80 - 220mm
包裝速度：20 - 60 bags/min（視物料特性而定）
Packing Speed:(Subject to material properties)
外型尺寸：1627 * 1834 * 1360 mm
Dimension ( L * W * H )
整機重量：1100 kg
Weight
總 功 率：AC380V / 50 - 60Hz / 5.8kW
Total Power
1、可適配不同規格、材質的預制袋（如自立袋、拉鏈袋、常規袋等），通過簡單調整即可切換袋型，速度快、效率高，穩定性好；支持顆粒、粉末、液體、醬料、塊狀等多形態物料包裝。Compatible with pre?made pouches of various sizes and materials (stand?up pouches, zipper pouches, regular pouches, etc.). Pouch?type change?over is achieved with simple adjustments. It delivers high?speed, high?efficiency and reliable performance for multi?form materials： granules, powders, liquids, pastes and block?shaped goods.
2、伺服控制系統調速技術確保動作精準、運行平穩；配備空袋監測、不開袋不封口等安全機制，避免物料浪費和包裝失敗。Servo?controlled speed regulation ensures precise movements and stable operation. Safety features include empty?pouch detection and no?seal for un?opened pouches to eliminate material waste and packaging faults.
3、設備采用間歇式旋轉平臺，取袋、開袋、灌裝、封口、整形等多個工位圓周排布，依靠旋轉完成各工序連續銜接；整機結構緊湊、節省占地，可高效滿足大產能包裝需求。袋體全程夾具夾持，袋型平整美觀，雙封封口均勻牢固。
Intermittent rotary?platform design. Stations for pouch feeding, pouch opening, filling, sealing and shaping are arranged circumferentially for seamless process transition. Compact footprint for high?capacity production. Pouches are held by grippers during the whole cycle, delivering flat, aesthetic pouches with uniform, robust double?side seals.
4、可拓展選配打碼、袋口除塵、充氮排氣、真空等功能模塊，適配鎖鮮、防潮等特殊包裝需求。Optional modules available：coding, pouch?mouth dust removal, nitrogen flushing, gas venting and vacuum functions for special packaging requirements including freshness?locking and moisture?proof packaging.
5、包裝材料：復合膜，如：純鋁，鍍鋁等預制袋。
Packaging Materials： Composite film, Pre?made pouches (Pure aluminum film, Metallized film, etc.)
計量范圍：10 - 1500g（視物料特性而定）
Filling Range:(Subject to material properties)
預制袋：長 ( L ) ：150 - 320mm
Pre-made Pouch 寬 ( W ) ：80 - 220mm
包裝速度：20 - 60 bags/min（視物料特性而定）
Packing Speed:(Subject to material properties)
外型尺寸：1627 * 1834 * 1360 mm
Dimension ( L * W * H )
整機重量：1100 kg
Weight
總 功 率：AC380V / 50 - 60Hz / 5.8kW
Total Power
