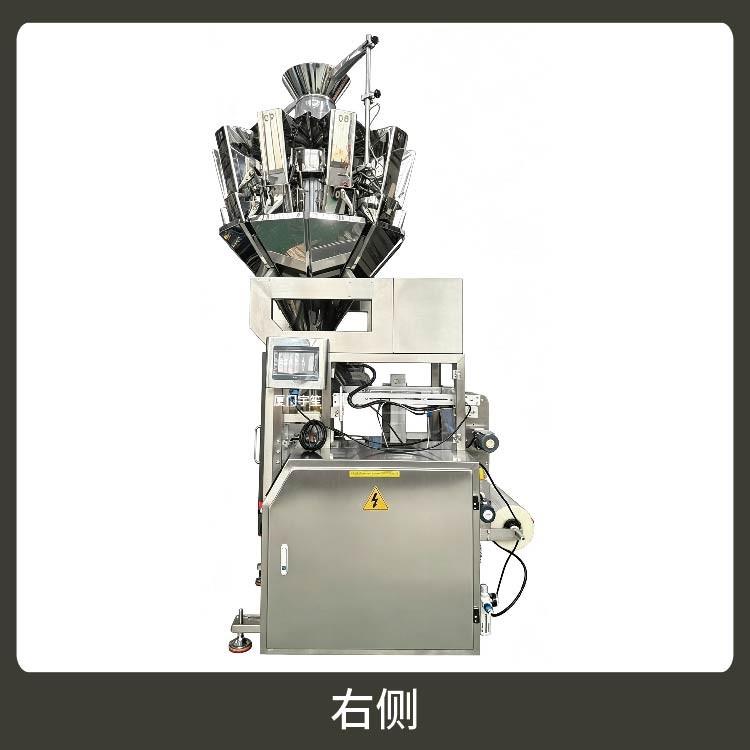

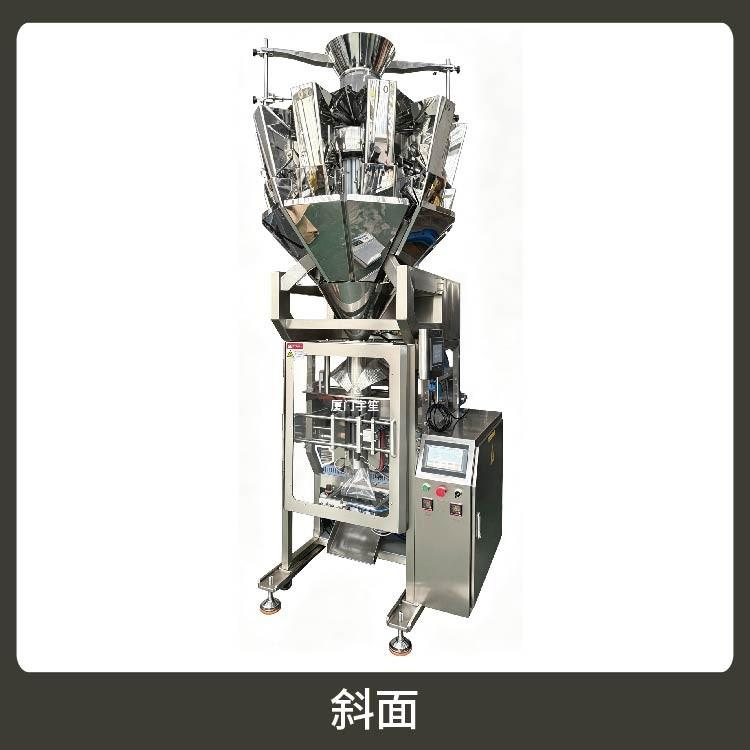

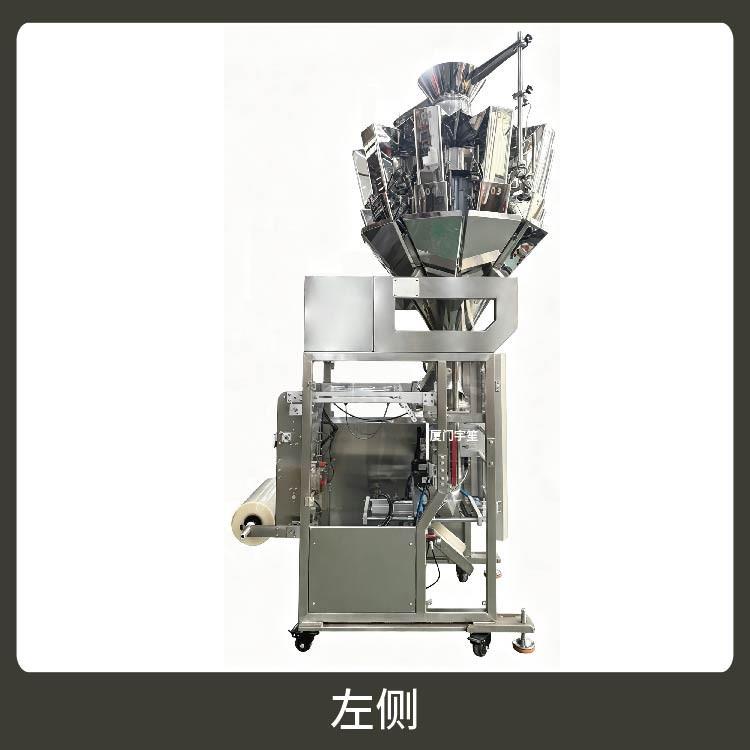

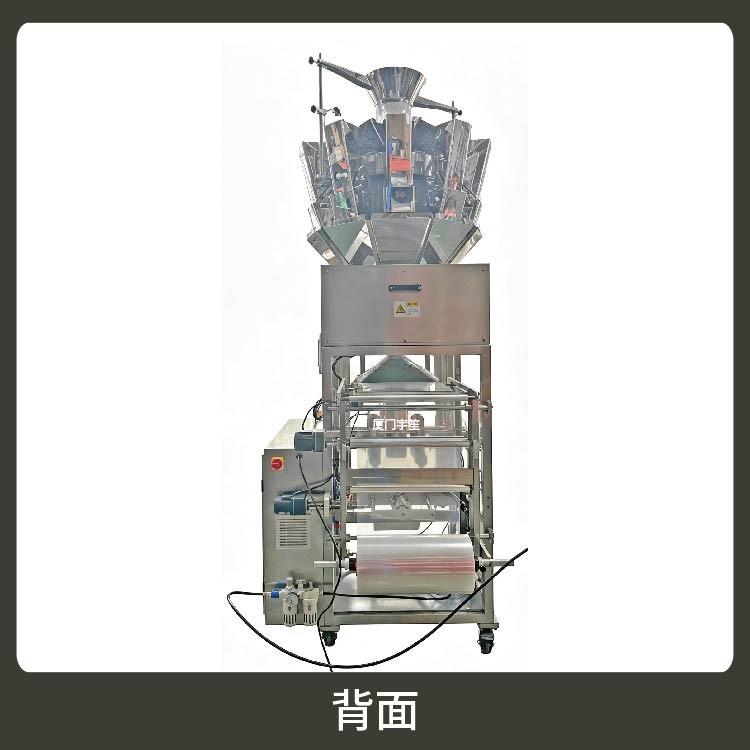

YS-420X 大克重顆粒包裝機 （10頭組合秤）
YS-420X 大克重顆粒包裝機 （10頭組合秤）
特 點 Characteristic
1、適用于食品、醫藥、化工、化妝品行業中顆粒、粉劑、液體、醬料等物品的大克重計量包裝，如：膨化食品、零食、堅果炒貨、寵物食品等。Suitable for large?weight metering and packaging of granular, powder, liquid and paste materials in food, pharmaceutical, chemical and cosmetic industries, such as puffed food, snacks, nuts & roasted seeds, pet food, etc.
2、運轉不易偏袋，成型規整，袋子方正挺括，顏值高，包裝穩定性極強。可自動完成制袋、計量、下料、封合、分切、計數，可根據客戶要求配置打印批號等功能。
Features minimal bag deviation during operation, uniform forming, square and crisp bags with excellent appearance, and exceptional packaging stability. It automatically completes bag making, weighing, feeding, sealing, slitting and counting. Functions such as batch number printing can be configured upon customer request.
3、觸摸屏操作，PLC控制，伺服電機控制袋長，性能穩定、調整方便、檢測準確。智能式溫控儀，PID調節，保證將溫度的誤差控制在1℃內。
The touch screen operation, PLC contro,servo motor to control the bag length,stable performance, easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.
4、包裝材料：復合膜。
Packing material:composite film.
封口方式 Sealing Type
背封封口
Back sealing
技術參數Technical Parameters
計量范圍：0.1 - 1.5kg
Measuring Scope
制袋尺寸：長 ( L ) ：40 - 500 mm
Bag Size: 寬 ( W ) ：90 - 210 mm
包裝速度：30 - 55bags / min（視物料特性而定）
Packing Speed
外型尺寸：1167 * 1682 * 2765mm
Dimension ( L * W * H )
整機重量： 約350kg
Weight
總 功 率：AC220V / 50 - 60Hz / 2.6kw
Total Power
氣 源：≥0.6Mpa
Gas source
1、適用于食品、醫藥、化工、化妝品行業中顆粒、粉劑、液體、醬料等物品的大克重計量包裝，如：膨化食品、零食、堅果炒貨、寵物食品等。Suitable for large?weight metering and packaging of granular, powder, liquid and paste materials in food, pharmaceutical, chemical and cosmetic industries, such as puffed food, snacks, nuts & roasted seeds, pet food, etc.
2、運轉不易偏袋，成型規整，袋子方正挺括，顏值高，包裝穩定性極強。可自動完成制袋、計量、下料、封合、分切、計數，可根據客戶要求配置打印批號等功能。
Features minimal bag deviation during operation, uniform forming, square and crisp bags with excellent appearance, and exceptional packaging stability. It automatically completes bag making, weighing, feeding, sealing, slitting and counting. Functions such as batch number printing can be configured upon customer request.
3、觸摸屏操作，PLC控制，伺服電機控制袋長，性能穩定、調整方便、檢測準確。智能式溫控儀，PID調節，保證將溫度的誤差控制在1℃內。
The touch screen operation, PLC contro,servo motor to control the bag length,stable performance, easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.
4、包裝材料：復合膜。
Packing material：composite film.
計量范圍：0.1 - 1.5kg
Measuring Scope
制袋尺寸：長 ( L ) ：40 - 500 mm
Bag Size: 寬 ( W ) ：90 - 210 mm
包裝速度：30 - 55bags / min（視物料特性而定）
Packing Speed
外型尺寸：1167 * 1682 * 2765mm
Dimension ( L * W * H )
整機重量： 約350kg
Weight
總 功 率：AC220V / 50 - 60Hz / 2.6kw
Total Power
氣 源：≥0.6Mpa
Gas source
