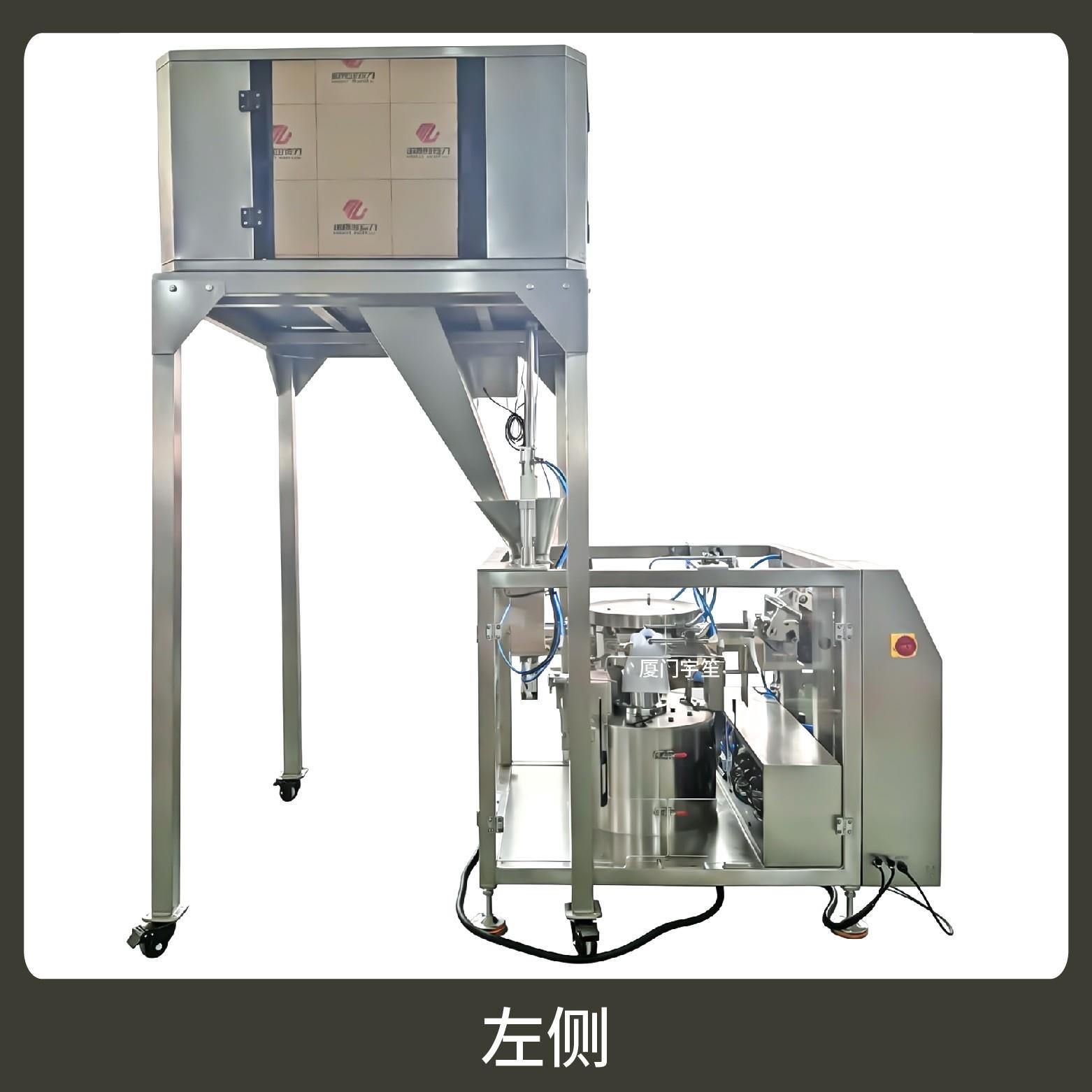

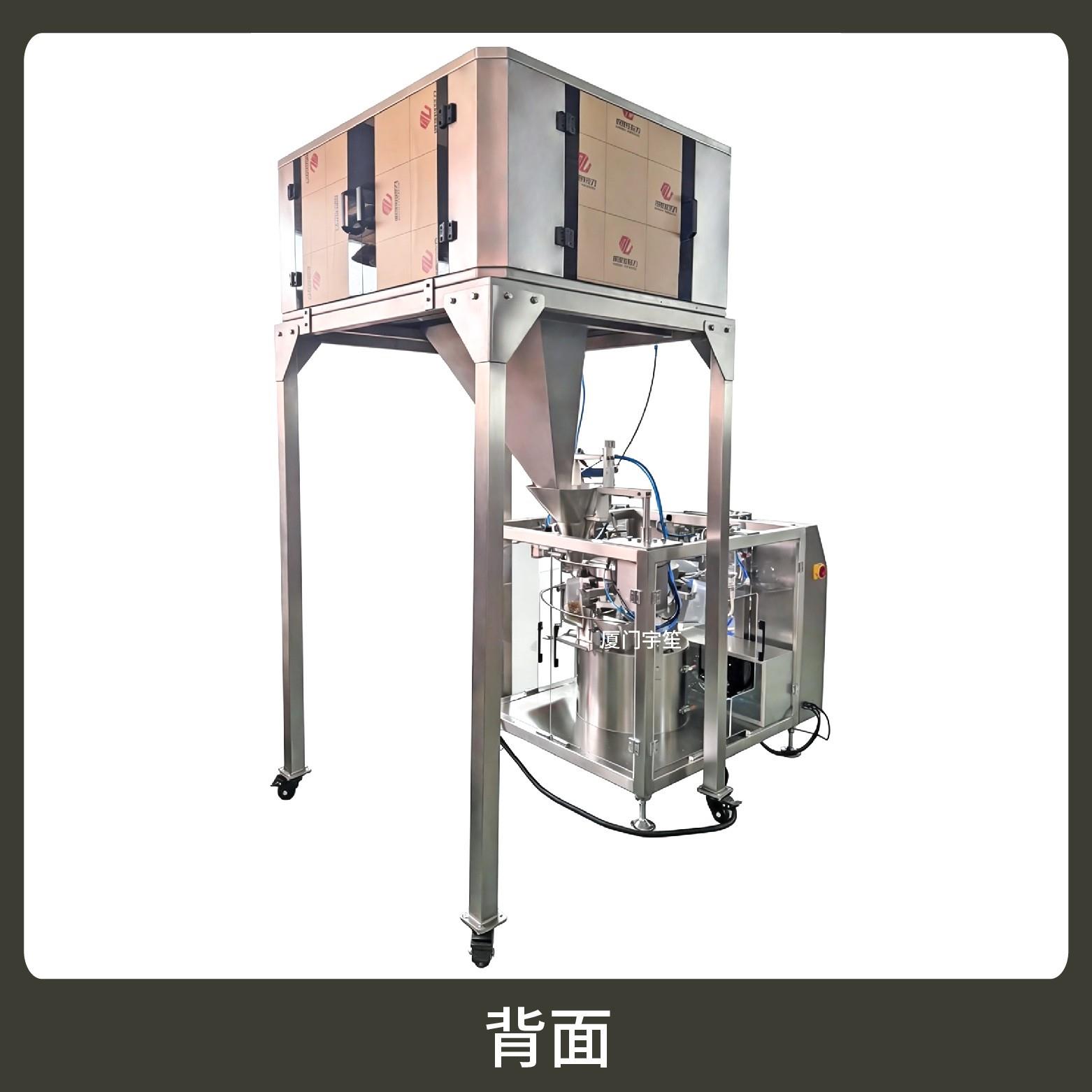

YS-XZ4-230A-DZC 4工位旋轉給袋電子秤包裝機
YS-XZ4-230A 4工位旋轉給袋電子秤包裝機
特 點 Features
1、可適配不同規格、材質的預制袋（如自立袋、常規袋等），通過簡單調整即可切換袋型，整機結構簡單；支持顆粒、粉末、液體、醬料、塊狀等多形態物料包裝。
Compatible with pre?made pouches of various sizes and materials (stand?up pouches, regular pouches, etc.). Pouch?type change?over is completed via simple adjustments. Simple overall machine construction, and handles multi?form materials: granules, powders, liquids, pastes and block?shaped products.
2、伺服控制系統調速技術確保動作精準、運行平穩；配備空袋監測、不開袋不封口等安全機制，避免物料浪費和包裝失敗。
Servo?controlled speed regulation guarantees precise movements and stable running. Built?in safety mechanisms include empty?pouch detection and no?seal for un?opened pouches, preventing material waste and packaging faults.
3、設備采用旋轉轉盤設計，4 個獨立工位同步進行取袋、開袋/檢測、計量灌裝、封切輸出工序，連續作業提升節拍效率。
The machine uses a rotary turntable design. Four independent stations simultaneously complete pouch feeding, pouch opening / inspection, metering?filling, sealing and discharging for higher continuous?operation efficiency.
4、包裝材料：復合膜，如：純鋁，鍍鋁等預制袋。
Packaging Materials: Composite film, Pre?made pouches (Pure aluminum film, Metallized film, etc.)
封口方式 Sealing Type
預制袋Pre-made Pouch
技術參數
Technical Parameters
計量范圍：10 - 1500g（視物料特性而定）
Filling Range:(Subject to material properties)
預制袋：長 ( L ) ：140 - 320mm
Pre-made Pouch 寬 ( W ) ：100 - 230mm
包裝速度：20 - 40 bags/min（視物料特性而定）
Packing Speed:(Subject to material properties)
外型尺寸：1395 * 2481 * 2477 mm
Dimension ( L * W * H )
整機重量：約330 kg
Weight
總 功 率：AC220V / 50 - 60Hz / 3.2kW
Total Power
氣 源：≥0.6 MPa
Air Supply
1、可適配不同規格、材質的預制袋（如自立袋、常規袋等），通過簡單調整即可切換袋型，整機結構簡單；支持顆粒、粉末、液體、醬料、塊狀等多形態物料包裝。
Compatible with pre?made pouches of various sizes and materials (stand?up pouches, regular pouches, etc.). Pouch?type change?over is completed via simple adjustments. Simple overall machine construction, and handles multi?form materials： granules, powders, liquids, pastes and block?shaped products.
2、伺服控制系統調速技術確保動作精準、運行平穩；配備空袋監測、不開袋不封口等安全機制，避免物料浪費和包裝失敗。
Servo?controlled speed regulation guarantees precise movements and stable running. Built?in safety mechanisms include empty?pouch detection and no?seal for un?opened pouches, preventing material waste and packaging faults.
3、設備采用旋轉轉盤設計，4 個獨立工位同步進行取袋、開袋/檢測、計量灌裝、封切輸出工序，連續作業提升節拍效率。
The machine uses a rotary turntable design. Four independent stations simultaneously complete pouch feeding, pouch opening / inspection, metering?filling, sealing and discharging for higher continuous?operation efficiency.
4、包裝材料：復合膜，如：純鋁，鍍鋁等預制袋。
Packaging Materials： Composite film, Pre?made pouches (Pure aluminum film, Metallized film, etc.)
計量范圍：10 - 1500g（視物料特性而定）
Filling Range:(Subject to material properties)
預制袋：長 ( L ) ：140 - 320mm
Pre-made Pouch 寬 ( W ) ：100 - 230mm
包裝速度：20 - 40 bags/min（視物料特性而定）
Packing Speed:(Subject to material properties)
外型尺寸：1395 * 2481 * 2477 mm
Dimension ( L * W * H )
整機重量：約330 kg
Weight
總 功 率：AC220V / 50 - 60Hz / 3.2kW
Total Power
氣 源：≥0.6 MPa
Air Supply
可適配不同規格、材質的預制袋（如自立袋、常規袋等），通過簡單調整即可切換袋型，整機結構簡單；支持顆粒、粉末、液體、醬料、塊狀等多形態物料包裝。
Compatible with pre?made pouches of various sizes and materials (stand?up pouches, regular pouches, etc.). Pouch?type change?over is completed via simple adjustments. Simple overall machine construction, and handles multi?form materials: granules, powders, liquids, pastes and block?shaped products.
